Testing hardware, slings, and hoists is common before performing a lift. However, testing the connection from which the hoist is hanging is rarely part of the pre-lift testing. The Pad Eye Tester from Slingmax® allows you to test lift points in upright, inverted, or horizontal applications. With a variety of features, the Slingmax® hydraulic Pad Eye Tester is the most versatile pad eye tester on the market today and is available in capacities of 10, 20, 30, and 50 ton.

Applications:

Proof testing pad eyes, lifting lugs, and eyebolts. Can be used upright, inverted, or in a horizontal plane.

Standard Features:

  • Carrying case
  • Lightweight and portable
  • Aluminum housing on 10,20, & 30 ton models
  • Assist handles on both sides
  • Stainless steel data plate with serial number
  • Adjustable clevis height
  • Large dial type capacity read out
  • Powder coated finish
  • 10 ft polyurethane hose with quick couplers
  • Lightweight two-speed hand pump with locking handle
  • Proof tested and calibrated

Optional Equipment:

  • Extra clevis and pin
  • Polyurethane hose in 10′, 12′, 20′, & 50′ lengths
  • Wire-braid rubber hose in 10′, 20′, 30′ , & 50′ lengths
  • Powered Pump
Part No.
Capacity (US Tons)

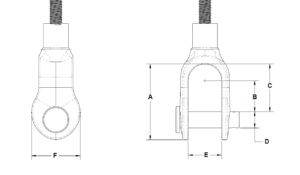

Clevis Dimensions (inches)
Pin Diameter (D)
Weight (lbs)
A
B
C
E
F
PET-010-PC 10 4-5/8 1-13/16 2-7/8 2 3 1″ 30
PET-020-PC 20 6-3/16 2 3-3/16 2-1/4 4 2″ 65
PET-030-PC 30 8-1/2 3-1/2 5 3 5-1/4 2″ 110
PET-050-PC 50 12 2-5/8 6 6-1/2 8/3/4 2-13/16″ 600
