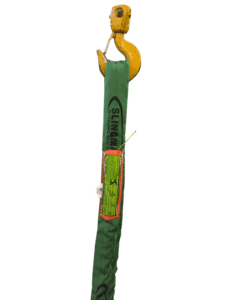

Single-Path Roundslings by Slingmax® Rigging Solutions are the only single path roundslings available with K-Spec® core yarn and the Check-Fast® Inspection System. These roundslings are lightweight, durable, and dependable.
| Note: Sling ratings based on commercial fittings of equal or greater capacity. Conforms to ANSI/ASME B30.9 chapter 6, NAVFAC P-307 section 14.7.4.3, Cordage Institute CI-1905, and Web Sling & Tie Down Association WSTDA-RS-1HP . This chart is based on a 5:1 Design Factor (DF); but any other DF can be fabricated. Higher capacity slings are available. CAPACITIES ARE IN POUNDS (LBS.). | |||||||
|---|---|---|---|---|---|---|---|
| Single-Path Sling Stock No. | Vertical | Choker | Vertical Basket | Basket Hitches | Approximate Weight (Lbs. per Ft.) (Bearing-Bearing) |
Nominal Body Width (inches)* |
|
 |
 |
 |
 |
 |
|||
| SPXCF 500 | 5,000 | 4,000 | 10,000 | 8,660 | 7,070 | .36 | 2.5" |
| SPXCF 1000 | 10,000 | 8,000 | 20,000 | 17,320 | 14,140 | .41 | 2.5" |
| SPXCF 1500 | 15,000 | 12,000 | 30,000 | 25,980 | 21,210 | .46 | 2.5" |
| SPXCF 2000 | 20,000 | 16,000 | 40,000 | 34,640 | 28,280 | .54 | 2.5" |
| SPXCF 2500 | 25,000 | 20,000 | 50,000 | 43,300 | 35,350 | .60 | 3" |
| SPXCF 3000 | 30,000 | 24,000 | 60,000 | 51,960 | 42,420 | .66 | 3" |
| SPXCF 4000 | 40,000 | 32,000 | 80,000 | 69,280 | 56,560 | 0.79 | 3" |
| SPXCF 5000 | 50,000 | 40,000 | 100,000 | 86,600 | 70,700 | 1.02 | 4" |
| SPXCF 6000 | 60,000 | 48,000 | 120,000 | 103,920 | 84,840 | 1.15 | 4" |
| SPXCF 7000 | 70,000 | 56,000 | 140,000 | 121,240 | 98,980 | 1.31 | 4" |
| SPXCF 8500 | 85,000 | 68,000 | 170,000 | 147,220 | 120,190 | 1.55 | 5" |
| SPXCF 10000 | 100,000 | 80,000 | 200,000 | 173,200 | 141,400 | 1.78 | 5" |
| SPXCF 12500 | 125,000 | 100,000 | 250,000 | 216,500 | 176,750 | 2.12 | 5" |
| SPXCF 15000 | 150,000 | 120,000 | 300,000 | 259,800 | 212,100 | 2.54 | 6" |
| SPXCF 17500 | 175,000 | 140,000 | 350,000 | 303,100 | 247,450 | 3.09 | 6" |
| SPXCF 20000 | 200,000 | 160,000 | 400,000 | 346,400 | 282,800 | 3.58 | 6" |
| *Dimensions can vary according to the hardware or bearing points the slings are used with. Minimum us "tapered" width; Maximum is the flat tubing width. |
METRIC SLINGS AVAILABLE | ||||||
