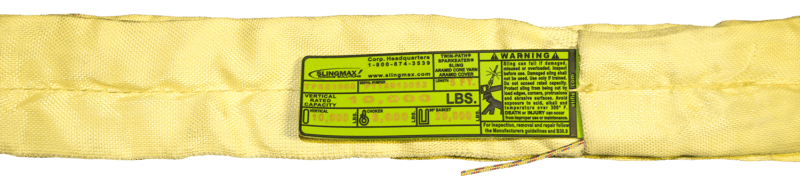

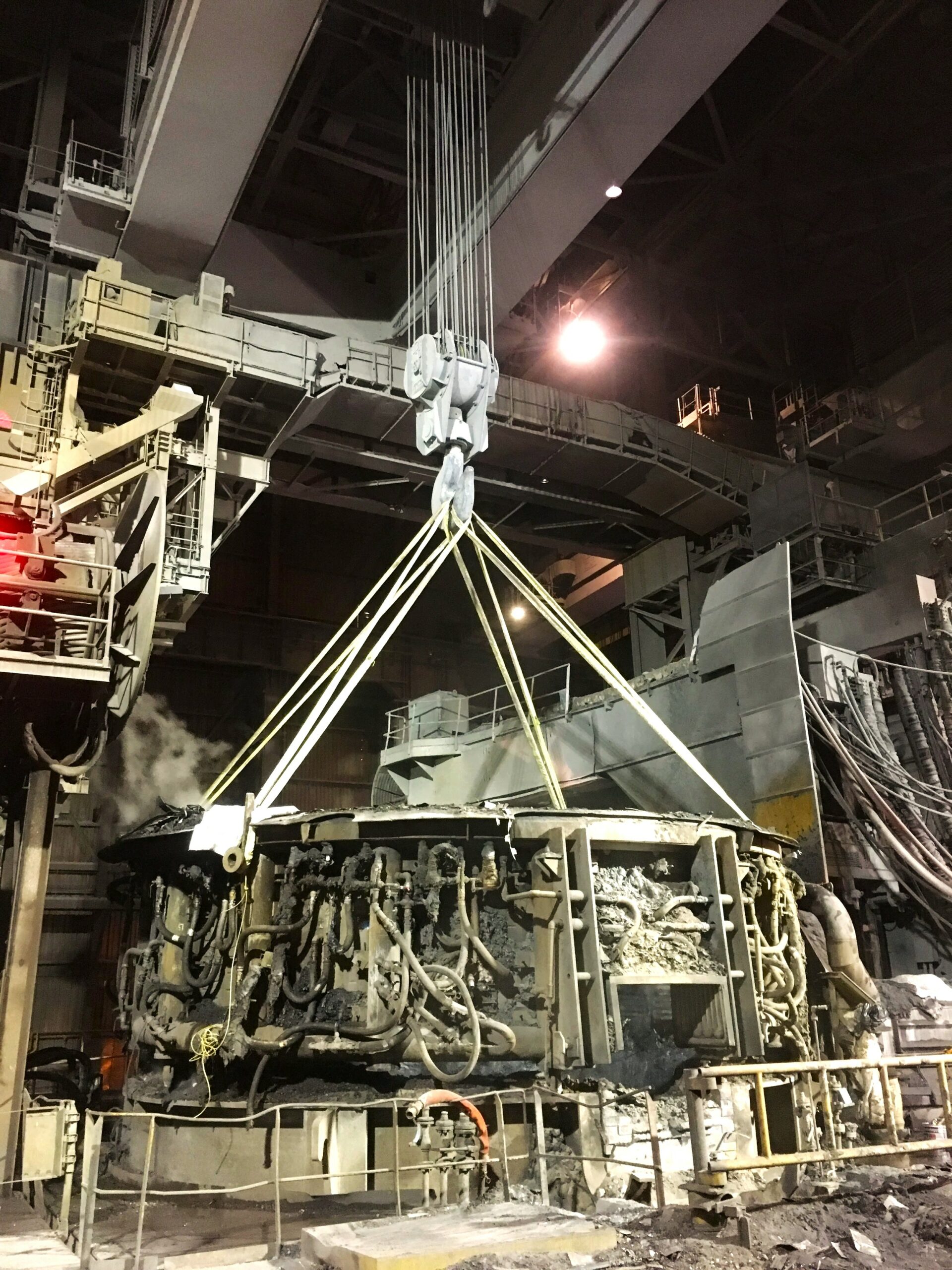

The Sparkeater® sling (SE) is the sling to use when the job site is in a hot environment (up to 300°F or 150°C). These slings are made with high-temperature core yarns and a high temperature cover. Sparkeater® slings,as with all Twin-Path® slings, come with an inner red cover that provides an early warning for damage, as well as the patented Check-Fast® Inspection System.
RATED CAPACITIES (Lbs.) |
|||||||
| Twin -Path® Sling Stock No. | Vertical | Choker | Vertical Basket | Basket Hitches | Approximate Weight (Lbs. per Ft.) (Bearing-Bearing) |
Nominal Body Width (inches)* |
|
 |
 |
 |
 |
 |
|||
| TPSE 1000 | 10,000 | 8,000 | 20,000 | 17.320 | 14,140 | .40 | 1.5-3" |
| TPSE 1500 | 15,000 | 12,000 | 30,000 | 25,980 | 21,210 | .45 | 1.5-3" |
| TPSE 2000 | 20,000 | 16,000 | 40,000 | 34,640 | 28,280 | .51 | 1.5-3" |
| TPSE 2500 | 25,000 | 20,000 | 50,000 | 43,400 | 35,350 | .57 | 1.5-3" |
| TPSE 3000 | 30,000 | 24,000 | 60,000 | 51,960 | 42,420 | .71 | 2.0-4" |
| TPSE 4000 | 40,000 | 32,000 | 80,000 | 69,280 | 56,560 | .83 | 2.0-4" |
| TPSE 5000 | 50,000 | 40,000 | 100,000 | 86,600 | 70,700 | 1.14 | 2.0-4" |
| TPSE 6000 | 60,000 | 48,000 | 120,000 | 103,920 | 84.840 | 1.27 | 2.0-4" |
| TPSE 7000 | 70,000 | 56,000 | 140,000 | 121,240 | 98.980 | 1.39 | 3.5-7" |
| TPSE 8500 | 85,000 | 68,000 | 170,000 | 147,220 | 120,190 | 1.65 | 3.5-7" |
| TPSE 10000 | 100,000 | 80,000 | 200,000 | 173,200 | 141,400 | 1.84 | 3.5-7" |
| METRIC CAPACITIES AVAILABLE | DO NOT EXCEED RATED CAPACITY | ||||||
| PLEASE NOTE: CAPACITIES SHOWN INCLUDE BOTH PATHS AND ARE FOR ONE COMPLETE SLING. SMALLER AND LARGER CAPACITIES AVAILABLE UPON REQUEST | |||||||
