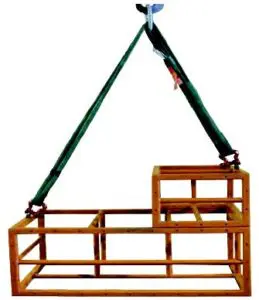

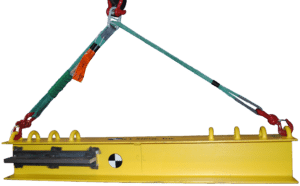

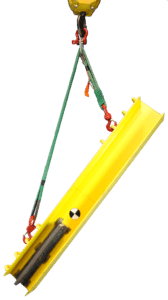

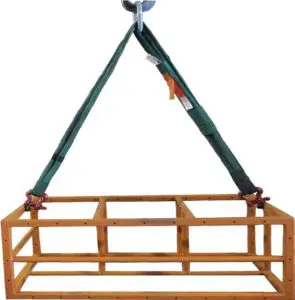

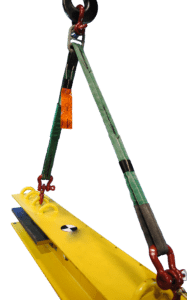

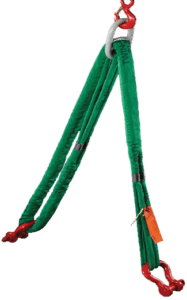

The Twin-Path® Adjustable Bridle (TPXA with K-Spec® fiber core yarn or TPA with polyester core yarn) is a two-leg bridle made with a Twin-Path® roundsling and adjustable bridle ring. Twin-Path® Adjustable Bridle can be adjusted until the lifting point is over the center of gravity (COG). This allows the two legs to be adjusted for a level lift without the need for custom slings or hardware.
| TWIN-PATH® ADJUSTABLE BRIDLE SPECIFICATIONS | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| TPA Code | Bridle Capacity (Llbs.) | Sling Eye Nominal Width | ADJUSTABLE RING DIMENSIONS | SHACKLE REQUIREMENTS | SLING WEIGHT (LBS.) | ||||
| Ring Stock Diameter | Main Hook Area (Width) | Ring Area (Length) | Nominal Shackle Size | Tonnage (W.L.L.) | Approx. 3 Foot Base | Approx. Adder Per Foot | |||
| TPA 6 | 6,000 | 2-1/2″ | 1-3/16″ | 3-1/8″ | 2-5/8″ | 5/8″ | 3-1/4T | 4.40 | 1.35 |
| TPXA 12 | 12,000 | 3″ | 1-1/8″ | 4-1/8″ | 4″ | 7/8″ | 6-1/2T | 6.80 | 1.95 |
| TPXA 20 | 20,000 | 3″ | 1-1/8″ | 4-1/8″ | 4″ | 1-1/4″ | 12T | 13.60 | 2.70 |
| TPXA 40 | 40,000 | 4″ | 1-5/8″ | 5 1/4″ | 5-1/2″ | 1-3/4″ | 25T | 31.10 | 4.20 |
| TPXA 60 | 60,000 | 4″ | 2″ | 7″ | 7-1/2″ | 2″ | 35T | 60.00 | 5.70 |
| TPXA 90 | 90,000 | 5″ | 2-1/4″ | 8″ | 8-1/2″ | 2-14″ | 55T | 86.00 | 8.10 |
| PLEASE NOTE: CAPACITIES SHOWN ARE FOR ENTIRE BRIDLE ASSEMBLY WITH THE DOUBLE LEG AT A 45″ HORIZONTAL ANGLE. *Body width is 1″ wider |
|||||||||
| METRIC CAPACITIES AVAILABLE | DO NOT EXCEED RATED CAPACITY | ||||||||
